Sku: LP1501

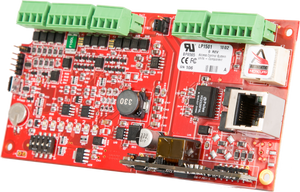

PoE+ Edge-capable Intelligent Controller (2 Readers, 2 Inputs, 2 Outputs)

The LP1501 is an edge-capable intelligent controller that is expandable up to 8 downstream serial input/output modules for a total of 17 doors/openings. The feature-rich LP1501 provides a small footprint, cost-effective dual card reader panel for controlling a single opening. Easy installation with Power-over-Ethernet Plus (PoE+) makes the high-performance, Ethernet-ready LP1501 a top choice for a single-door controller.

Prices are subject to change.



  • IP-to-the-Door - supports PoE+ power, removing the cost of traditional power supplies and homerun wiring.
  • Enhanced Security - embedded crypto memory chip and data at rest encryption.
  • OSDP Protocol - secure channel security for reader connectivity.
  • Versatile Interoperability - same reliable interface and identical footprint as the EP controllers.

Key Specifications

  • 240,000 cardholder capacity
  • Supports up to 130 inputs and 130 outputs
  • Natively supports up to 2 readers and 1 opening, expands to 17 readers/openings
  • Supports PoE(1.25A for Lock and Reader)
  • IPv4/6, TLS1.2, 802.1X
  • FIPS 140-2 user of OpenSSL
