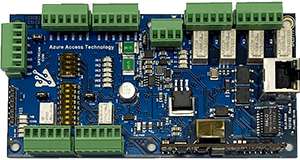

Two Door Sub-Controller
The RI2M is the next generation, reader-interface sub-controller. It is a low-profile device that can be installed near or at the door. It features 2-door control with two combo TTL / OSDP reader ports; with supporting supervised inputs, and relay outputs. The RI2M is supported through UnityIS.
Features
- Open Hardware Platform
- Fully Encrypted Communication
- 2 Reader Ports
- 6 Supervised or Unsupervised Alarm Inputs
- 4 Outputs for Strike or Alerting System Control
Documentation
Mechanical
- Operating Temperature: -40°C to +85°C • 5% to 95% humidity
- Dimensions: 5.4in (137.2mm) x 2.75in (69.9mm) x 0.88in (22.35mm)
- Weight: 0.28 pounds (126 grams)
Regulatory Compliance
- UL 294, UL294B, UL1076, UL2610
- ULC / O RD C1076
- CE Compliant
- FCC Part 15 Class A
- RoHS / Pb (Lead) Free
