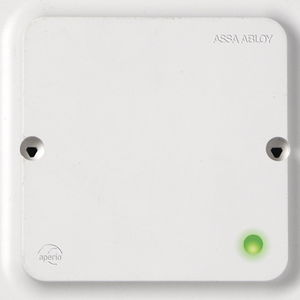

The Aperio® IP Communication Hub provides a secure solution for integrating Aperio® wireless locking devices with UnityIS over an IP/Ethernet network. Designed for indoor use, the hub supports up to 16 Aperio® devices.
The hub features an integrated antenna with the option to connect an external antenna. It supports encrypted wireless communication and TLS 1.1/1.2 encryption for TCP/IP connections. Power can be supplied through Power over Ethernet (PoE) or an external power supply. Designed for installation in standard electrical boxes, the hub also includes an LED indicator for status monitoring.
|
Specification |
Description |
|---|---|
|
Approvals |
CB, CE, C-Tick, ETL, FCC, IC, ICASA |
|
Safety and Emissions |
FCC 47 CFR Part 15 Subparts B and C; IC RSS-210; EN ETSI 301 489-17 v2.2.1; EN ETSI 300 328 v1.8.1; EN 60950-1:2006 / A11:2009 / A12:2011 / A1:2010 / AC:2011; UL 294-2010 |
|
Dimensions (H × W × D) |
82 × 82 × 37 mm |
|
Required Power Supply |
PoE: IEEE 802.3af compliant, Class 1 Powered Device (PD). External Power Supply: Minimum 3.5 W with 3 A overcurrent protection. |
|
Radio Standard |
IEEE 802.15.4 (2400–2483.5 MHz), 16 channels (11–26) |
|
Radio Communication Encryption |
AES 128-bit |
|
Wireless Operating Range |
Typically 15–25 m, depending on building environment |
|
Receiver Sensitivity |
-100 dBm |
|
Maximum Spectral Density |
10 dBm/MHz according to EN ETSI 300 328 |
|
Internal Antenna |
Two-port cross-polarized patch antenna |
|
External Antenna |
One reverse-polarity SMA external antenna connector |
|
Class of Protection |
IP20 |
|
Operating Temperature Range |
5°C to 35°C |
|
Relative Humidity |
Less than 95% (non-condensing) |
|
Status Indicator |
LED (red/green/orange) |
