IMRON Trove1

IMRON Trove1 (Up to 4 Doors)

(Access Boards Sold Separately)

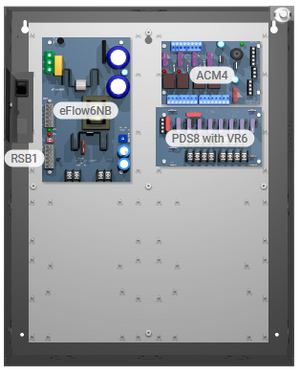

The IMRON Trove1 Systems are powered with Altronix modules that are used with IMRON access boards in one compact and secure UL Listed solution.

• eFlow6NB - 6amp power supply with 12VDC or 24VDC selectable voltage
• ACM4CB - provides four PTC protected outputs
• VR6 - voltage regulator converts 24VDC input into 5VDC or 12VDC output
• PDS8CB - dual input and includes eight PTC protected outputs
• RSB1 - single rocker switch bracket

SYS-4SM can accommodate:

• (1) Mercury LP1502 and
• (1) Mercury MR52-S3B

SYS-4EM can accommodate:

• (2) Mercury MR52-S3B or
• (2) Mercury MR16IN-S3 or
• (2) Mercury MR16OUT-S3 or
• (2) Mercury LP1501 or
• (2) Mercury MR62e

SYS-4SA can accommodate:

• (1) Azure IC2 and
• (1) Azure RI2M or
• (1) Azure IC4

SYS-4EA can accommodate:

• (2) Azure RI2M
