IMRON Trove1R

IMRON Trove1R (Up to 4 Doors)

(Access Boards Sold Separately)

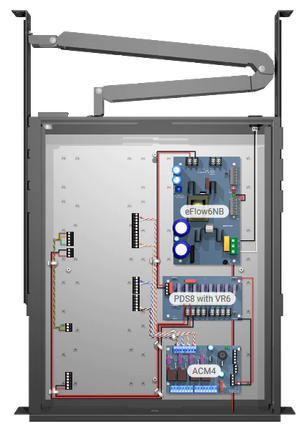

The IMRON Trove1R Rack Mount Systems are powered with Altronix modules that are used with IMRON access boards in one compact and secure UL Listed solution.

• eFlow6NB - 6amp power supply with 12VDC or 24VDC selectable voltage
• ACM4CB - provides four PTC protected outputs
• VR6 - voltage regulator converts 24VDC input into 5VDC or 12VDC output
• PDS8CB - dual input and includes eight PTC protected outputs

SYSR-4SM can accommodate:

• (1) Mercury LP1502 and
• (1) Mercury MR52-S3B

SYSR-4EM can accommodate:

• (2) Mercury MR52-S3B or
• (2) Mercury MR16IN-S3 or
• (2) Mercury MR16OUT-S3 or
• (2) Mercury LP1501 or
• (2) Mercury MR62e

SYSR-4SA can accommodate:

• (1) Azure IC2 and
• (1) Azure RI2M

SYSR-4EA can accommodate:

• (2) Azure RI2M

SYSR-4EZ can accommodate:

• (1) Atlas160 or
• (1) Atlas260 or
• (1) Atlas460
